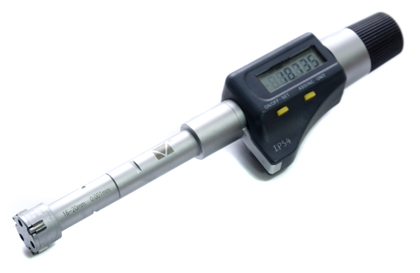

2x-3x point micrometer internal calipers are designed to measure the internal dimensions of products in absolute units. These are self-centering and self-leveling internal calipers. Measuring supports located in three directions at 120° intervals ensure optimal self-centering. The set includes an extension and an installation ring. The internal micrometers are suitable for measuring blind and through holes.
| Type | Range, | D.o., | Error, | Measuring system | Measurement depth | Price, UAH * |
| mm | mm | mm | ||||
| НММЦ-2,5 | 2-2.5 | 0.001 | ±0.004 | conical | 12.5 | 38286 |
| НММЦ-3 | 2.5-3 | 0.001 | ±0.004 | conical | 12.4 | 38286 |
| НММЦ-4 | 3-4 | 0.001 | ±0.004 | conical | 22.5 | 31590 |
| НММЦ-5 | 4-5 | 0.001 | ±0.004 | conical | 22.5 | 31590 |
| НММЦ-6 | 5-6 | 0.001 | ±0.004 | conical | 22.5 | 31590 |
| НМТЦ-8 | 6-8 | 0.001 | ±0.006 | conical | 154 | 28296 |
| НМТЦ-10 | 8-10 | 0.001 | ±0.006 | conical | 154 | 28296 |
| НМТЦ-12 | 10-12 | 0.001 | ±0.006 | conical | 154 | 28296 |
| НМТЦ-16 | 12-16 | 0.001 | ±0.006 | conical | 230 | 27756 |
| НМТЦ-20 | 16-20 | 0.001 | ±0.006 | conical | 230 | 27756 |
| НМТЦ-25 | 20-25 | 0.001 | ±0.006 | conical | 240 | 28296 |
| НМТЦ-30 | 25-30 | 0.001 | ±0.006 | conical | 240 | 28296 |
| НМТЦ-40 | 30-40 | 0.001 | ±0.006 | conical | 247 | 31644 |
| НМТЦ-50 | 40-50 | 0.001 | ±0.006 | conical | 247 | 34938 |
| НМТЦ-70Р | 50-70 | 0.001 | ±0.006 | spindle | 250 | 38502 |
| НМТЦ-100Р | 70-100 | 0.001 | ±0.006 | spindle | 250 | 54540 |
| НМТЦ-150Р | 100-150 | 0.001 | ±0.007 | spindle | 250 | 63180 |
| НМТЦ-250Р | 150-250 | 0.001 | ±0.008 | spindle | 250 | 133110 |
| НМТЦ-300Р | 200-300 | 0.001 | ±0.009 | spindle | 250 | 332802 |
| НМТЦ-500Р | 200-500 | 0.001 | ±0.011 | spindle | 650 | 415962 |
| НМТЦ-1000Р | 200-1000 | 0.001 | ±0.021 | spindle | 1150 | 535896 |
All products are calibrated
*Prices do not include 20% VAT
Download PDF document (10 Mb)
